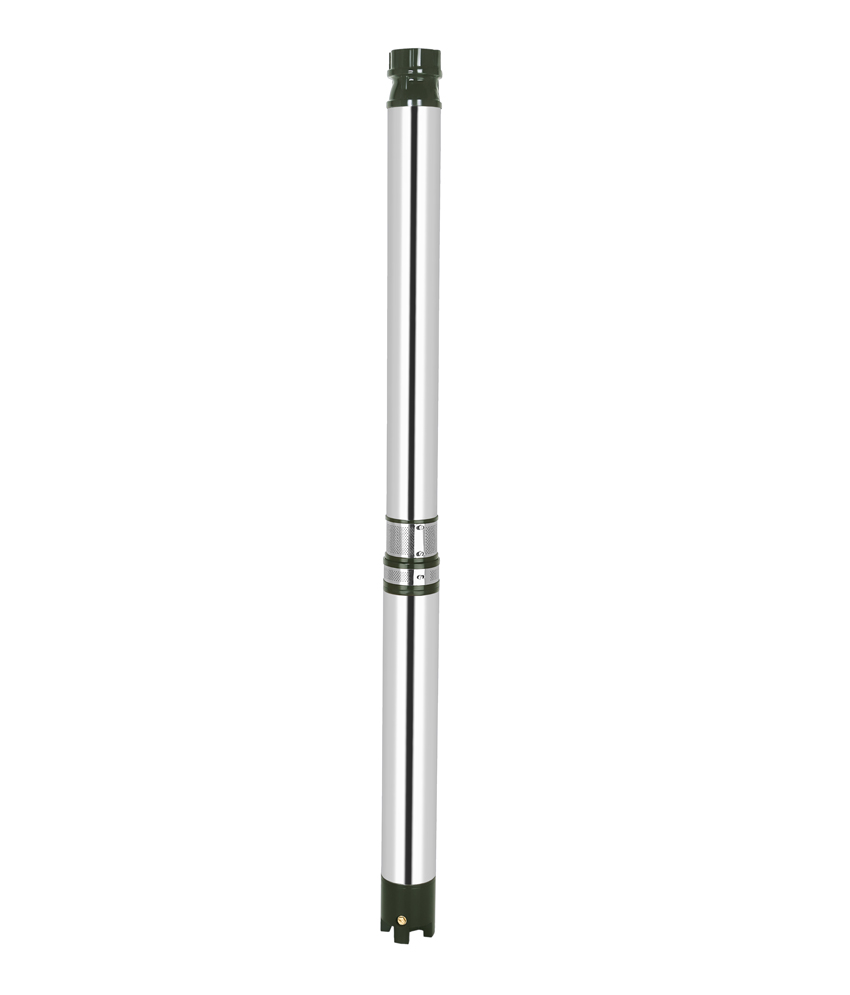

V-4 100MM BORE WELL SUBMERSIBLE PUMP SET 3.00 H.P. 20 STAGE THREE PHASE

Model : MPT7320

SALIENT FEATURES
→  Corrosion resistant stainless steel body.
→  Specially designed to start in low voltage and sustain in high voltage fluctuations.
→  High electrical and mechanical efficiency.
→  Higher heat dissipation.
→  Dynamically balanced rotor and other rotating parts for uniform clearance.
→  Specially designed bearing to withstand axial thrust loads.
→  Designed for high voltage fluctuations.
→  Noise free operation.
→  Modular design and all parts are easily interchangeable.
→  Energy Efficient Models.
→  Higher efficiency resulting in lower operating cost.
APPLICATION
→  Agriculture Farm
→  Industries Water Supply
→  Sprinkler & Drip Irrigation
→  Gardens
→  Residential Complex - High rise Buildings
→  Hospitals
→  Water Treatment Plant
TECHNICAL DATA
MODEL
BORE SIZE		→  MPT7320
→  100 MM  (4")
POWER→  2.20 Kw
H.P.→  3.00
STAGE→  20
CURRENT IN AMPS→  6.50
VERSION→  THREE PHASE  300 TO 440 VOLT
RATED SPEED IN RPM→  2880
FREQUENCY→  50 Hz
CATEGORY→  B
DUTY TYPE→  S1 (CONTINUOUS)
TYPE→  WET TYPE
CONNECTION→  STAR
OPERATING DATA
DUTY POINT HEAD→  80 METERS
DUTY POINT DISCHARGE→  108 LPM
OPERATING HEAD RANGE→  60 TO 100 METERS
OPERATING DISCHARGE RANGE→  130 TO 70 LPM
OUT LATE →  40 MM  (1.5")
CORRECT SPEED IN RPM→  2820
MAXIMUM FLOW RATE→  162 LPM
TOTAL HEAD
MAXIMUM OPERATING PRESSURE		→  130 METERS
→  13.0 Bar
MAXIMUM LIQUID TEMPERATURE→  35º
PARTICULARSMATERIALS OF CONSTRUCTION
MOTOR BODY / PUMP BODY→  S.S. 202
BEARING BUSH→  LTB - 4 BRONZE
MOTOR SHAFT / PUMP SHAFT→  S.S.410
THRUST BEARING→  S.S. 420 & GRAPHITE CARBON
HOUSING / BASE / NRV / SUCTION→  CI - FG -200
STAMPING→  CRNO - M50
SCREWS / STUDS→  S.S. 410 & S.S. 202
IMPELLER / BOWL→  NORYL GNF2 TECHNO POLYMER
WINDING WIRE→  E.C. GRADE HIGH INSULATION
ROTOR →  E.C. GRADE COPPER & CRNO - M50
PCD CUP→  NITRILE RUBBER
