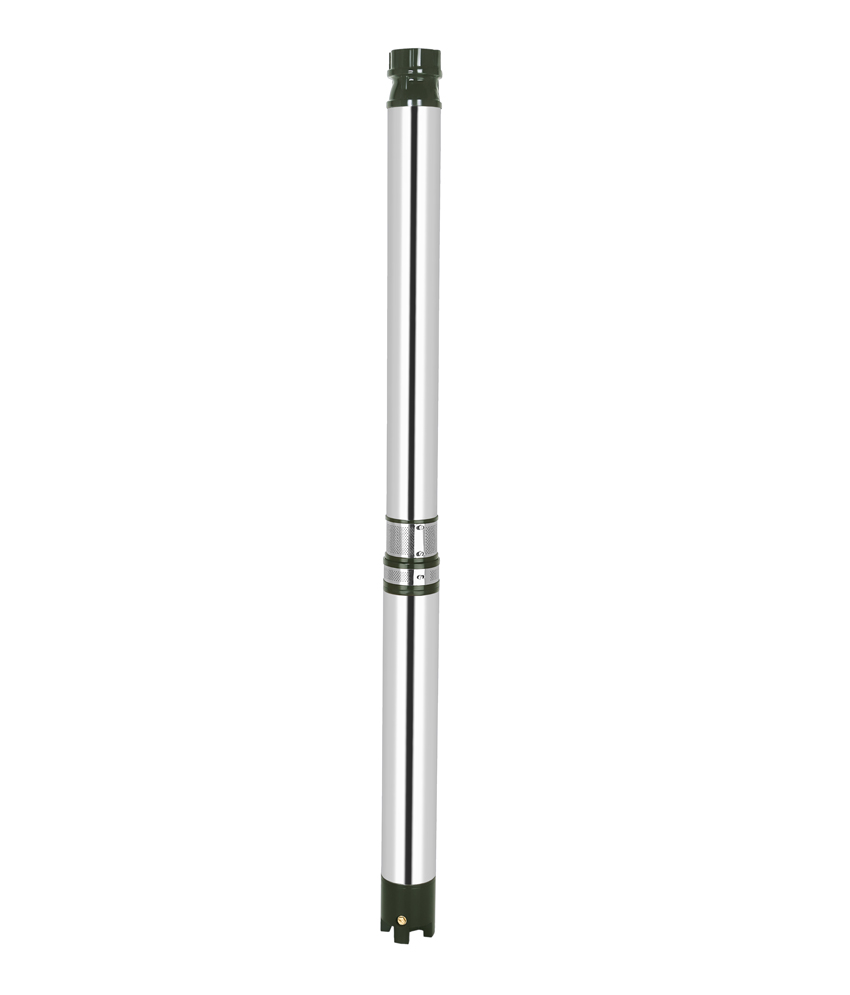

V-4 100MM BORE WELL SUBMERSIBLE PUMP SET 0.50 H.P. 10 STAGE SINGLE PHASE

Model : MP1510

SALIENT FEATURES
→  Corrosion resistant stainless steel body.
→  Specially designed to start in low voltage and sustain in high voltage fluctuations.
→  High electrical and mechanical efficiency.
→  Higher heat dissipation.
→  Dynamically balanced rotor and other rotating parts for uniform clearance.
→  Specially designed bearing to withstand axial thrust loads.
→  Designed for high voltage fluctuations.
→  Noise free operation.
→  Modular design and all parts are easily interchangeable.
→  Energy Efficient Models.
→  Higher efficiency resulting in lower operating cost.

APPLICATION
→  Agriculture Farm
→  Industries Water Supply
→  Sprinkler & Drip Irrigation
→  Gardens
→  Residential Complex - High rise Buildings
→  Hospitals
→  Water Treatment Plant
TECHNICAL DATA
MODEL
BORE SIZE		→  MP1510
→  100 MM (4")
POWER→  0.37 Kw
H.P.→  0.50
STAGE→  10
CURRENT IN AMPS→  6.00
VERSION→  SINGLE PHASE 160 TO 240 VOLT
RATED SPEED IN RPM→  2880
FREQUENCY→  50 Hz
CATEGORY→  B
DUTY TYPE→  S1 (CONTINUOUS)
TYPE→  WET TYPE
CONNECTION→  PARALLEL (CSCR)
OPERATING DATA
DUTY POINT HEAD→  40 METERS
DUTY POINT DISCHARGE→  34 LPM
OPERATING HEAD RANGE→  30 TO 44 METERS
OPERATING DISCHARGE RANGE→  45 TO 27 LPM
OUT LATE →  25 MM  (1")
CORRECT SPEED IN RPM→  2790
MAXIMUM FLOW RATE→  63 LPM
TOTAL HEAD
MAXIMUM OPERATING PRESSURE		→  72  METERS
→  6.0 Bar
MAXIMUM LIQUID TEMPERATURE→  35º
PARTICULARS MATERIALS OF CONSTRUCTION
MOTOR BODY / PUMP BODY→  S.S. 202
BEARING BUSH→  LTB - 4 BRONZE
MOTOR SHAFT / PUMP SHAFT→  S.S.410
THRUST BEARING→  S.S. 420 & GRAPHITE CARBON
HOUSING / BASE / NRV/ SUCTION→  CI - FG -200
STAMPING→  CRNO - M50
SCREWS / STUDS→  S.S. 410 & S.S. 202
IMPELLER / BOWL→  NORYL GNF2 TECHNO POLYMER
WINDING WIRE→  E.C. GRADE HIGH INSULATION
ROTOR →  E.C. GRADE COPPER & CRNO - M50
PCD CUP→  NITRILE RUBBER
